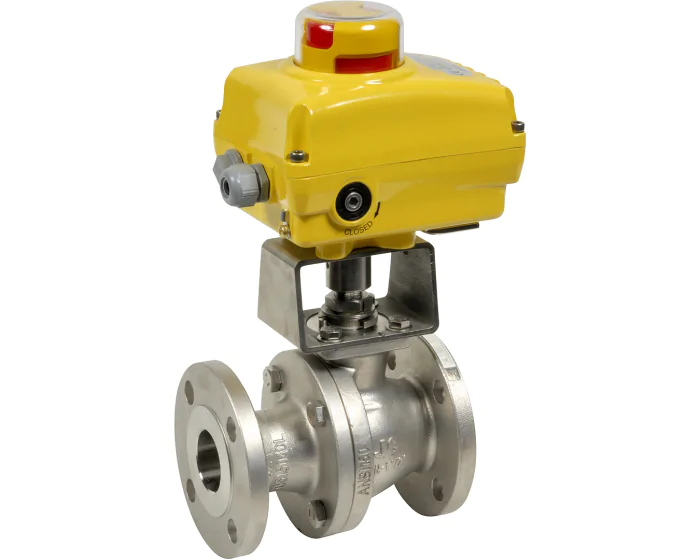

The JC 515IIT ball valve has a CF8M stainless steel body and ball, PTFE seats. It is actuated with an SA/NA electric actuator. PS: 20 bar, TS: 230°C. ANSI150 RF flanges.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN15 - 1/2'' |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 457.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 20 |
| Power (W) | 98 |
| Connections | Flanged #150 PN20 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 03 |
| Electric actuator series | SA/NA series |
| Seats | PTFE |
| Operating time (s) | 87.0 |
| Voltage | 230 V AC |
| TS max (°C) | 230 |
| TS min (°C) | -50 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | JC Valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' SA 03 | 515IIT015023000 | S1005228 |
€558.89
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' SA 03 | 515IIT020023000 | S1005229 |
€588.81
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' SA 03 | 515IIT025023000 | S1005230 |
€601.79
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' NA 09 | 515IIT050023120 | S1005232 |
€1,529.99
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 NA 09 | 515IIT065023120 | S1005233 |
€1,846.73
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' NA 15 | 515IIT080023130 | S1005234 |
€2,224.21
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' NA 28 | 515IIT100023150 | S1005235 |
€3,139.96
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN200 - 8'' NA 150 | 515IIT200023210 | S1005237 |
€8,808.16
(excl. btw)
|
add to cart |
